Product Description

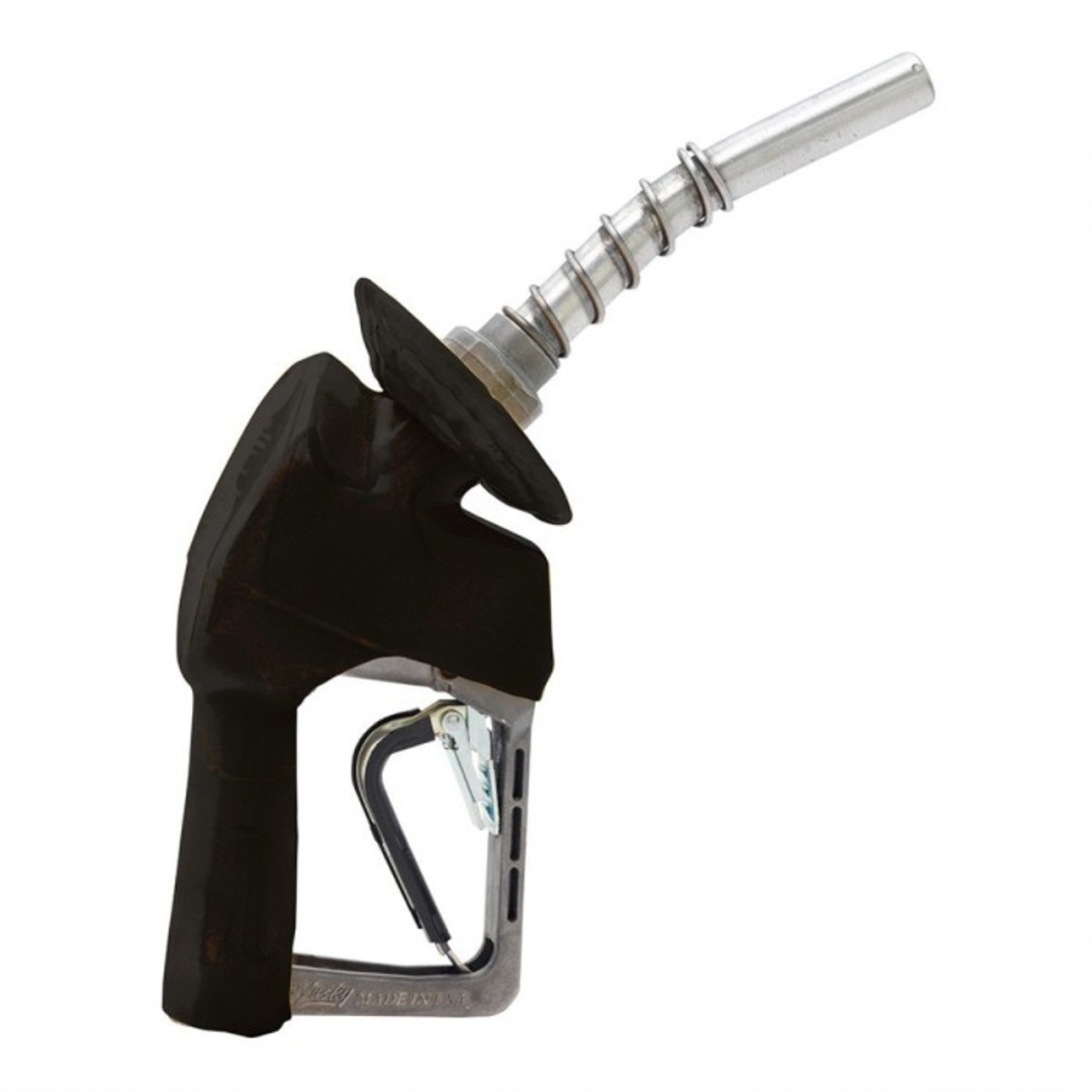

Pressure activated, automatic shut-off nozzle for full-service and self-service stations. Model 159559, with Three Notch Hold Open Clip and Waffle Splash Guard. This is the same as buying 159504 Nozzle plus 001808 Waffle Splash Guard.
- Husky XS® nozzle shuts off when:
the pump shuts off.
the gas tank is full.
the lever is opened before the pump is turned on.
the leak detector has not completed its test cycle. - Stainless steel spout bushing keeps spout tip round and acts as a captive fastener to prevent tip-end sensor damage.
- Nozzle is equipped with a unique Flo-Stop® device that shuts off the nozzle if it falls from the fill tank or raises above the horizontal.
- StreamShaper® reduces turbulence for straighter fuel flow and less splash back spillage.
- Comes standard with smooth full grip guard.
Please Select From Available Colors:
01 - Blue
02 - Red
03 - Green
04 - Black
05 - Yellow
06 - White
08 - Gold
09 - Silver
16 - BP Green
20 - Pink
Construction
Body: One piece die cast aluminum
Seals: Fluorocarbon
Packing: Double o-ring seal protected by fiber reinforced Teflon®
Lever: One piece contoured steel with hard plastic cover
Inlet: ¾ / 19.1 mm NPT
